Bose L1 Pro32 + Sub2
| Product # | 223228 |
| Brand | Bose |
| Series | Bose L1 |
| SubSeries | Bose L1 Pro |
| Category | Compact Line Array System |
| Brand Category | Bose - Compact Line Array Systems |
Recommended accessories
The peak of portable PA
With the supreme clarity and output of a 32-driver articulated line array, the L1 Pro32 with Sub1 Powered Bass Module offers 180-degree horizontal coverage and the most focused vertical coverage pattern and highest SPL over distance in an L1 ever — providing intricate sonic detail, clarity, and consistency, even off to the extreme sides in larger venues.
Slim size. Big bass.

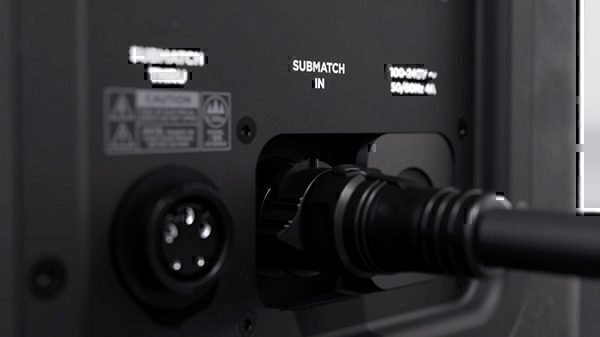

The L1 Pro32 combined with the Bose Sub1 subwoofer, features a 7" × 13" high-excursion RaceTrack driver. Sub1 is a more compact, portable option. With this unique RaceTrack driver design, the Sub1 offers bold bass, has an optimized center of gravity, and saves a lot of space. The slim design means you get the full impact of a conventional subwoofer without the cumbersome size. Plus, proprietary SubMatch connectivity means you can connect the Sub1 to the L1 Pro32 with a single cable that delivers both power and audio.

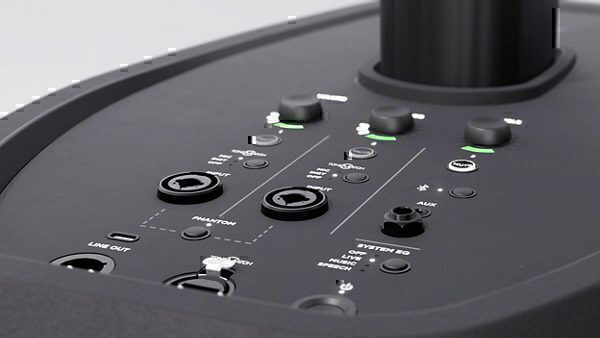

Mixer onboard and on your phone
Each L1 Pro system features a built-in mixer, so you can connect various instruments, microphones, and other sources easily. You get two combo XLR-1/4" phantom-powered inputs, 1/4" and 1/8" (3.5 mm) aux inputs, plus Bluetooth streaming capability. Illuminated rotary encoders give you instant access to volume, tone, and reverb settings per channel. Select between optimized system EQ presets for live music, recorded music, and more. And add in even more instruments and other audio sources via a dedicated ToneMatch port — one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional).

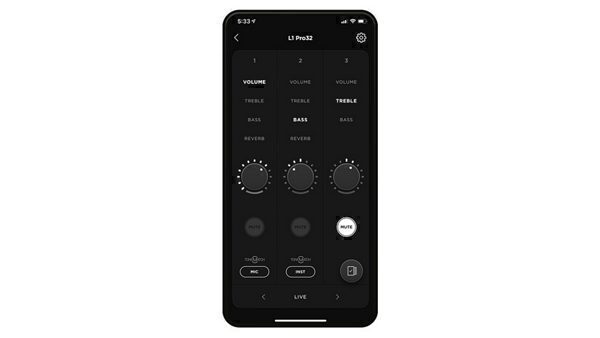

Intuitive and instant wireless control
With the L1 Mix app, you can adjust mixer settings instantly from your mobile device or even walk the room, hear how the mix sounds, and fine-tune as you go. Change volume and tone settings in the app and watch the LED encoder on your L1 Pro move to match — the mixer and app are always in sync, in real time. Plus, you have access to the entire ToneMatch library of custom EQ presets. With the L1 Mix app, you get the connectivity that empowers your performance, giving you greater flexibility for on-the-fly tweaks via controls that are intuitive and instant.
- Low frequency (-3 dB) with Sub1: 37 Hz
- SPL max: 117 dB (Cont.) / 123 dB (Peak)
- Lowest frequency: 37 Hz
- Dispersion angle: 180° H x 0° V
- Class D amplifier
- Power: Mids/Treble 480 W / Bass 480 W
- Output: XLR Line Out
| Product Details | |
|---|---|
| Product Number | 223228 |
| Brand | |
| Series | |
| SubSeries | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Compact Line Array System | |
| Date | February 2021 |
| Dimension | |
|---|---|
| Gross Weight | 20kg |
