Behringer MonoPoly
| Product # | 223753 |
| Brand | Behringer |
| Category | Synthesizer |
| Brand Category | Behringer - Synthesizers |
- Traces of use on side panels and one of the corners. Micro scratches in Logo and on some keys (Pictures 5-7)
MONOPOLY
The 1980s was an amazing decade for electronic music. Artists like Vince Clarke and bands like Depeche Mode have used synthesizers to great effect, creating hits such as Just Can’t Get Enough and People are People. What synthesizer could they have used, you might ask? It was none other than the MonoPoly synth, which was only available for 3 years before it was taken off the shelves and has become a true collector’s item. Today, we’re bringing this beauty to the 21st century with the Behringer MONOPOLY. This is an ultra-affordable and even more feature-packed homage to the original. Conjure up virtually any sound imaginable with incredible finesse and ease. The pure analog signal path is based on the authentic MonoPoly circuitry as well as VCO, VCF and VCA designs from the 80s. Take a walk in the shoes of legends or create your own timeless classics with the MONOPOLY.
True to the Original
Great care has been taken in engineering the MONOPOLY, including the true-to-the-original analog circuitry, 4 VCOs and incredibly flexible key modes for monophonic, duophonic and 4-voice polyphonic playstyles. This highly focused attention to detail is what gives the MONOPOLY its ultra-flexible sound shaping capability and allows you to recreate tones that are evocative of classic electronic music. It gives you the ability to cover a lot of amazing tones from super-fat bass, tasty leads – all the way to full-on dreamy ambience from the far reaches of your imagination.
Big, Fat Tones
The synthesizer tracks laid down in the ‘80s in progressive rock, wave and synth-pop have become classics and have inspired many other artists. The MONOPOLY lets you recreate all that magic – or design some incredible and original sounds that will make you a legend in your own right!
A Timeless Classic
Just like its predecessor, the MONOPOLY comes with four VCOs, each with four switchable waveshapes such as triangle, reverse sawtooth, pulse width modulation and pulse width. Each VCO’s octave, level and tuning can be adjusted separately with their respective knobs. Setting the VCOs to PWM mode allows you to route the signal to one of two analog LFOs again with four selectable waveforms and adjustable frequency for some more advanced sound creation. Blend the VCOs with different waveshapes together and add a bit of cross-modulation to get some piercing leads and gigantic bass notes that are totally going to give your audience the goosebumps.

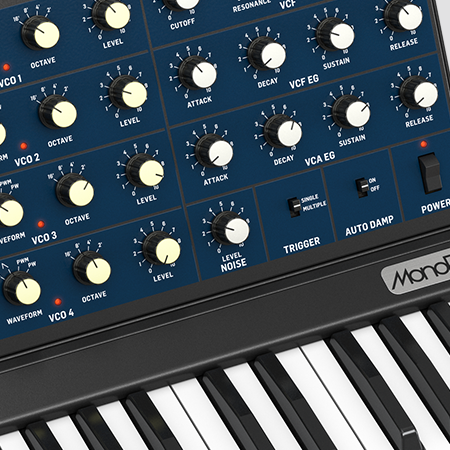

Sculpting a Masterpiece
The MONOPOLY includes a VCF and VCA, each with its own ADSR that let you adjust the shape of the envelope to create notes that are short and percussive or long and atmospheric. You can even add in a bit of white noise by turning up the Noise knob. This dramatically spices up your waveforms and gives you full control of your sounds, letting you shape your tone any way you want. Sweep the Cutoff knob on the VCF from left to right while setting the resonance to just the right amount and listen as your note transforms from a low rumble to a sizzling crescendo that’s just perfect for creating the right atmosphere in your next cyberpunk epic.

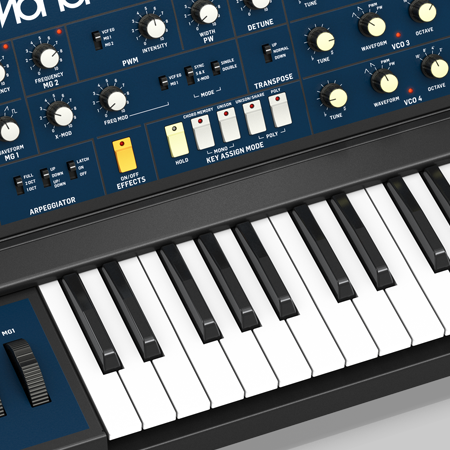

Key Assign Mode
With the Key Assign Mode section you can select how the MONOPOLY operates, whether it’s in Unison mode, which plays all four VCOs at once when a key is pressed, Polyphonic mode or Unison/Share mode which shares the VCOs according to the number of notes played. There’s also a Chord Memory mode for creating complex harmonies with a single key press. Start off in Poly mode, press the hold button, play your chord and hit the Chord Memory button. Now you’ll be able to play that chord with a single key. Combine all these modes in your next production and you’re on your way to having a truly amazing song that will really get the crowd moving.
The Keys Please
The MONOPOLY features 37 semi-weighted keys with velocity functionality. Pitch can be raised or lowered using the Bend wheel, while modulation depth is controlled with the MG1 wheel. You can even select what each wheel modifies as well as its intensity in the Wheel section.
Controls and Connectivity
We just can’t help ourselves – like you, we’re gear heads too. For those who want the numbers, the MONOPOLY has 62 knobs and buttons, all laid out on a tiltable front panel in a highly intuitive format that puts the joy back into your music creation. The MONOPOLY also includes multiple in and outputs for controlling filter cutoff, oscillator pitch and CV/Gate as well as MIDI.
Unleash Your Imagination
When it comes to recreating the classic sounds of an era like the 1980s, with a few modern features, there’s nothing like the Behringer MONOPOLY, portable and so very affordable.
- - Amazing analog synthesizer with 4 classic VCOs for amazingly fat music creation
- - 4-Voice polyphonic/paraphonic design with mono, unison and polyphonic mode
- - 37 semi-weighted full-size keys featuring velocity functionality
- - Authentic reproduction of original circuitry from the ‘80s
- - Pure analog signal path based on authentic VCO, VCF, and VCA designs
- - 4 variable oscillator shapes per VCO and variable pulse widths for ultimate sounds
- - Autotune functionality to ensure VCOs automatically stay in tune
- - Classic 24 dB filter with resonance for legendary sound performance
- - Cross-modulation and oscillator sync for piercing lead sounds and complex effects
- - Dual analog LFOs with 4 selectable waveforms and multiple destinations for advanced sound creation
- - Dedicated filter and amplifier ADSR envelope generators for full control of your sounds
- - Chord memory for complex harmonies with a single key press
- - Noise generator for dramatically expanded waveform generation
- - Separate pitch modulation of VCO 1 for sync/x-mod effects
- - Front panel can be laid flat or tilted in multiple angles for easy access of all controls
- - 62 controls give you direct and real-time access to all important parameters
- - Multiple in and outputs for controlling filter cutoff, oscillator pitch, CV/gate and more
- - Comprehensive MIDI implementation with MIDI channel and Voice Priority selection
Modes: Chord memory, unison mono, unison share, poly
Type: Analog
Oscillators: 4 (32.7 Hz to 4.186 Hz)
MG1: 0.1 Hz to 20 Hz
MG2: 0.1 Hz to 30 Hz
VCF: low pass filter, 24 dB/oct. slope
Envelopes: VCA, VCF
MIDI channels: 16
Connectivity
MIDI in / out/ thru: 5-pin DIN
USB (MIDI): Type B
Main output: 1 x 1/4" TS, unbalanced
Max. output level: +6 dBu
Impedance: 700 Ω
Headphones: 1 x 1/4" TRS, stereo
Max. output leve: -2 dBu
External control inputs
Arpeggiator Sync in: 1 x 1/4" TRS, Tip=clock, Ring=start/stop signal
Portamento: 1 x 1/4" TS, unbalanced
VCF cutoff freq mod: 1 x 1/4" TS, unbalanced, -5 V to +5 V
VCO freq mod: 1 x 1/4" TS, unbalanced, -5 V to +5 V, 1 Oct/V
Trigger in: 1 x 1/4" TS, unbalanced
CV in: 1 x 1/4" TS, unbalanced, 1 Oct/V
Internal control outputs
Trigger out: 1 x 1/4" TS, unbalanced
CV out: 1 x 1/4" TS, unbalanced, 1 Oct/V
Switch: Trigger polarity: 15V, ground
General Controls
Knobs:
- Output volume: 0 to 10, adjustable
- Bend wheel intensity: 0 to 10, adjustable
- MG 1 wheel intensity: 0 to 10, adjustable
- Portamento: 0 to 10, adjustable
- Master tune: 0 to 10, adjustable
- Detune: 0 to 10, adjustable
Switches:
- Output: high/ low/ off
- Bend wheel: vco 1/ slave vco/ pitch / vcf
- MG 1 wheel: vco 1/ slave vco/ pitch / vcf
- Transpose: up / normal/ down
Modulation
Knobs:
- MG 1 frequency: 0 to 10, adjustable
- MG 1 waveform: triangular/ reverse saw/ saw/ pulse, selectable
- MG 2 frequency: 0 to 10, adjustable PWM intensity: 0 to 10, adjustable
- PW intensity: 0 to 10, adjustable
- X-mod: 0 to 10, adjustable
- Freq mod: 0 to 10, adjustable
Switches:
- PMW: vcf eg/ mg 1/ mg 2
- Freq mod: vcf eg/ mg 1
- Mode: sync/ s & x / x-mod
- Mode: single/ double
LED (red):
- Mg 1 frequency
- Mg 2 frequency
Arpeggiator
Switches:
- Full/ 2 octave/ 1 octave
- Up/ down/ up+down
- Latch/ on/ of
USB
- Type: Class-compliant USB 2.0, type B
Supported operating systems
- Windows XP or higher: Mac OS X 10.6.8 or higher
Power Requirements
External power adaptor: 12 VDC 1000 mA
Power consumption: 9 W max.
Environmental
Operating temperature range: 5°C – 40°C (41°F – 104°F)
| Key attributes | |
|---|---|
| Number of Keys | 37 |
| Colour | Black |
| Keyboard Type | Touch Response |
| Speakers | No |
| Model | Synthesizer |
| Product Dimensions | |
|---|---|
| Depth | 361mm |
| Width | 648mm |
| Height | 90mm |
| Synthesizer attributes | |
|---|---|
| Battery Operated | No |
| Pedal | Not Included |
| MIDI Interface | USB to Host |
| Stand | Not Included |
| Built-in Tones | Yes |
| Cover | No |
| Display | No |
| Unit | 1 piece(s) |
| Product Details | |
|---|---|
| Product Number | 223753 |
| Brand | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Synthesizer | |
| Date | April 2021 |
| Dimension | |
|---|---|
| Weight | 10.3kg |
| Box Width | 648mm |
| Gross Weight | 12.3kg |
