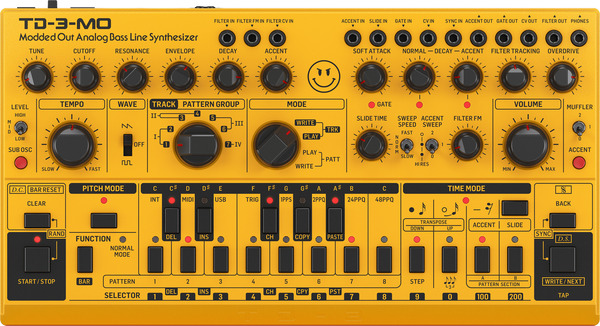

Behringer TD-3-MO-AM
EUR 155.00
In backorder
Incl. VAT, free shipping
| Product # | 230970 |
| Brand | Behringer |
| Category | Synthesizer Module |
| Brand Category | Behringer - Modules |

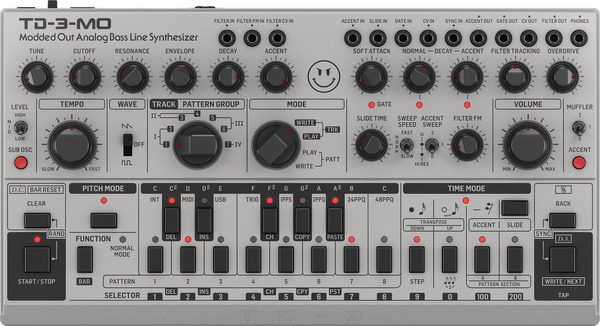

Modded Out Analog Bass Line Synthesizer with VCO, MIDI-Controllable VCF and Sub-Harmonics Oscillator
Modded Out Analog Bass Line Synthesizer with VCO, MIDI-Controllable VCF and Sub-Harmonics Oscillator
- - “Modded Out” Bass Line synthesizer featuring the most legendary modifications
- - Pure analog signal path based on legendary VCO, VCF and VCA designs

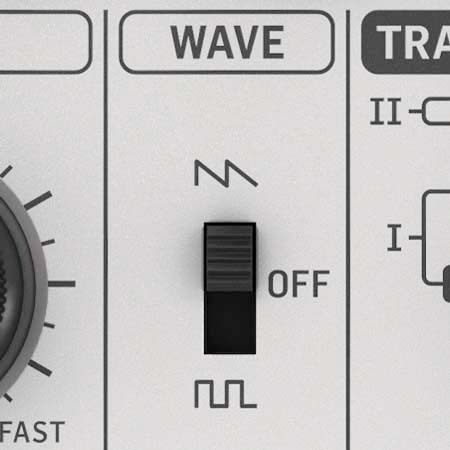

- - Sawtooth and square waveform VCO with transistor wave-shaping circuitry
- - Amazing 4-pole low-pass resonant filter with cut-off, resonance, envelope, decay and accent controls
- - Easy-to-use 16-step sequencer with 7 tracks, each with 250 user patterns
- - Filter frequency fully controllable via MIDI C/C
- - Earth-shattering sub-harmonics oscillator with switchable output level
- - Authentic analog slide circuitry with external slide control

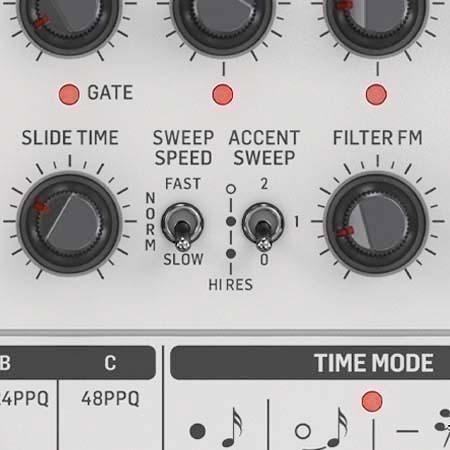

- - Slide Time control allows for variable slide time (up to 6 times longer)
- - Sweep Speed switch features 3 accent speed modes (slow, norm, fast)
- - Accent Sweep switch features 3 sweep combinations with high resonance mode
- - Filter FM control modulates frequency of the filter from the audio output of the VCA
- - Muffler circuitry features post VCA distortion with full bass response
- - Dedicated Accent push button to manually activate the accent
- - Soft Attack control for wide range of attack times for non-accented notes
- - Normal control for wide range of decay time for non-accented notes
- - Accent control for wide range of decay time for accented notes
- - Filter Tracking control for filter frequency tracking of the current note
- - Overdrive control adds insane spice and edge to your sounds
- - Massive amount of CV and Gate in/outs for extreme creativity
- - 16-voice Poly Chain allows combining multiple synthesizers for up to 16-voice polyphony
- - Premium quality VRs featuring high resolution and metal shafts for long lifecycle
- - 15 controls and 33 switches to give you direct and real-time access to all important parameters
- - MIDI and USB implementation with MIDI channel and Voice Priority selection
- Number of voices: Monophonic
- Type: Analog
- Oscillators: 1
- VCF: 1 low pass
- Envelopes: 1
- Connectivity
- Power input: DC input connector
- Power switch: Push button on/off
- MIDI In/Thru: MIDI In and MIDI Thru, 5-pin DIN
- USB (MIDI): USB 2.0, type B
- Outputs: Line output: 1/4" TRS, unbalanced, max. +8 dBu
- Output impedance: 1.5 k Ω
- Headphones: 3.5 mm TRS, max. 50 mW/32 Ω (1 KHz, 1% THD)
- Headphones output impedance: 15 Ω
- USB
- Type: Class compliant USB 2.0, type B
- Supported Operating Systems: Windows 7 or higherMac OS X 10.6.8 or higher
- Inputs:
Filter in: -6 V to +6 V
Filter FM in: 0 V to +12 VFilter CV in: 0 V to +12 V
Accent in: off: 0 V, on: +12 V
Slide in: off: 0 V, on: +3.3 V
Gate in: off: 0 V, on: +3.3 V
CV in: +1 V to +5 V
Sync in: more than 2.5 V
- Outputs:
Accent out: off: 0 V, on: +6 V
Gate out: off: 0 V, on: +12 VCV out: +1 V to +5 V (1 volt/oct)
Filter out: -400 mV to +400 mV
Power Requirements
External power adapter (use only the supplied adapter): 9 VDC 670 mA
Power consumption: 4 W max.
Environmental
Operating temperature range: 5°C – 40°C (41°F – 104°F)
Physical
Dimensions (H x W x D): 56 x 305 x 165 mm (2.2 x 12 x 6.5")
Weight: 0.9 kg (2.0 lbs)
Shipping weight: 1.4 kg (3.1 lbs)
- Type: Analog
- Oscillators: 1
- VCF: 1 low pass
- Envelopes: 1
- Connectivity
- Power input: DC input connector
- Power switch: Push button on/off
- MIDI In/Thru: MIDI In and MIDI Thru, 5-pin DIN
- USB (MIDI): USB 2.0, type B
- Outputs: Line output: 1/4" TRS, unbalanced, max. +8 dBu
- Output impedance: 1.5 k Ω
- Headphones: 3.5 mm TRS, max. 50 mW/32 Ω (1 KHz, 1% THD)
- Headphones output impedance: 15 Ω
- USB
- Type: Class compliant USB 2.0, type B
- Supported Operating Systems: Windows 7 or higherMac OS X 10.6.8 or higher
- Inputs:
Filter in: -6 V to +6 V
Filter FM in: 0 V to +12 VFilter CV in: 0 V to +12 V
Accent in: off: 0 V, on: +12 V
Slide in: off: 0 V, on: +3.3 V
Gate in: off: 0 V, on: +3.3 V
CV in: +1 V to +5 V
Sync in: more than 2.5 V
- Outputs:
Accent out: off: 0 V, on: +6 V
Gate out: off: 0 V, on: +12 VCV out: +1 V to +5 V (1 volt/oct)
Filter out: -400 mV to +400 mV
Power Requirements
External power adapter (use only the supplied adapter): 9 VDC 670 mA
Power consumption: 4 W max.
Environmental
Operating temperature range: 5°C – 40°C (41°F – 104°F)
Physical
Dimensions (H x W x D): 56 x 305 x 165 mm (2.2 x 12 x 6.5")
Weight: 0.9 kg (2.0 lbs)
Shipping weight: 1.4 kg (3.1 lbs)
| Key attributes | |
|---|---|
| Number of Keys | Buttons |
| Colour | Brown |
| Keyboard Type | Touch Response |
| Speakers | No |
| Model | Sound Module |
| Product Dimensions | |
|---|---|
| Depth | 165mm |
| Width | 305mm |
| Height | 56mm |
| Synthesizer Module attributes | |
|---|---|
| Battery Operated | No |
| Pedal | Not Included |
| MIDI Interface | USB to Host |
| Stand | Not Included |
| Built-in Tones | Yes |
| Cover | No |
| Display | No |
| Product Details | |
|---|---|
| Product Number | 230970 |
| Brand | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Synthesizer Module | |
| Date | May 2022 |
| Dimension | |
|---|---|
| Weight | 0.9kg |
| Box Depth | 431mm |
| Box Width | 305mm |
| Box Height | 94mm |
| Gross Weight | 1.4kg |
Reviews
(2)
View different language product reviews (1)
If you have ever wondered how it would be to have a TB-303 Devilfish, then this is the answer. The sound is dirty and scratchy as I expected. The yellow color and the angry smiley on the front is the cherry on the cake. I like this instrument very much.
